Difference of Healthtron Y9000W and W9000W - Used Healthtron @ Comparison -

To Healthtron @ relative top
From Healthtron Y9000W the change to W9000W

As for ultimate and efficient masterpiece of Hakuju!! The basis not to change, as for cloth of the chair high-class!!

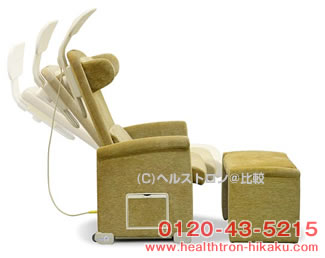

The first Y9000W
The basis not to change, as for cloth of the chair high-class
Existence W9000W
Healthtron Healthtron Healthtron Healthtron
Y9000W red peduncle Y9000W green Y9000W gold W9000W gray/beige

Feature and comment

High voltage unit of the alternating current system which is original the Hakuju was built in to the chair Healthtron of the “economical space design”.
Efficiency output of the equipment is similar to Healthtron K9000, but electrification system is indirect system, the electrode, top, type differs from direct electrification system with 3 electrodes which are provided in 3 places of the seat section and the foot. It is possible to be able receive the ground of the foot to the substance, for the caster attachment alone to carry.
Because the remedy vessel itself is built in inside the chair, when you compare with Healthtron K9000, the space of the equipment itself may be little, but naturally, it is impossible to increase the chair. Electrification system with indirect discharge from 2 places of the head electrode and the seat section electrode, becomes the ground stand where the foot block of the foot leads electrification, the other person touching to the person who is in the midst of turning on electricity, is left over, the stimulus which is made numbness is little. The ground stand has become thermal specification, because the heater is built in, with use of winter season the treasure it does. The use impression not to be completely in main person of the user, because there is no feeling which has turned on electricity, the use impression you can feel Healthtron K9000.
There are some where reclining function belongs to latter-term type, but with existence it is succeeded in the W9000 series.

Technical Specifications
Healthtron Y9000W
Medical equipment approval number 20600BZZ00257
Rated voltage AC100V
Rated electric power consumption 9W
Rated frequency 50-60Hz
Effective voltage It is low) 4500V high) 9000V
Timer time 15 minutes, 30 minutes, 60 minutes
Size (height x width x depth) 1450 x 720 x 850mm
Weight 47kg
Selling agency / Manufacturer HAKUJU INSTITUTE FOR HEALTH SCIENCE CO .,LTD.
Country of manufacture Made in Japan
Heater section specification (thermal ground stand)
Rated voltage AC 100V (from chair itself supply)
Electric power consumption 30W
Timer time 60 minutes
Surface temperature Approximately 45°C (at the time of room temperature 20°C)
Healthtron W9000
Medical equipment approval number 20600BZZ00257
Rated voltage AC100V
Rated electric power consumption 9W
Rated frequency 50-60Hz
Effective voltage It is low) 4500V high) 9000V
Timer time 15 minutes, 30 minutes, 60 minutes
Size (height x width x depth) 1450 x 750 x 1200 - 2000mm
Weight 42kg
Selling agency / Manufacturer HAKUJU INSTITUTE FOR HEALTH SCIENCE CO .,LTD.
Country of manufacture Made in Japan
Thermal ottoman
Rated voltage AC 100V (from chair itself supply)
Electric power consumption 40W
Timer time 60 minutes
Surface temperature Approximately 45°C (at the time of room temperature 20°C)

Healthtron detail photograph
Healthtron
Only latter-term type thermal specification
Enlargement picture of operation switch
Operation panel
Switch picture of thermal ground stand
Thermal ground stand
Healthtron
Enlargement picture of operation switch
Operation panel
Switch picture of thermal ground stand
Thermal ground stand

Healthtron
Enlargement picture of operation switch
Operation panel
Switch picture of thermal ground stand
Thermal ground stand
In latter-term type manually operated reclining function and Ottoman addition
Healthtron
Enlargement picture of operation switch
Operation panel
Switch picture of thermal ground stand
Thermal ground stand
* As for photograph beige

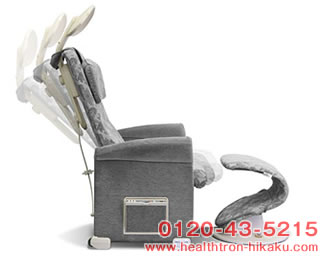

Manually operated reclining functional addition
